Pan / Tilt / Zoom
Zoom Lens
IP Camera
CMOS
2048*1080
1080*1280
Availability: | |
---|---|
Quantity: | |
Model Technical | KG-9268-TB | |
2.0MP Thermal Imager Camera | ||
Sensor type | Silicon oxide uncooled infrared focal plane detector | |
resolution | 256x192, pixel size 12μm | |
lens | Focal length: 3.2mm, field Angle: 56°x 42 | |
Temperature measurement accuracy | ±0.3ºC, the target temperature is 35ºC~38ºC | |
Temperature measuring distance | One meter - four meters | |
Effective radiated area | 15mm*30mm | |
Temperature range | 30ºC-50ºC | |
Temperature resolution | 0.01ºC | |
Stability accuracy | ≤0.1ºC | |
Image sensor | 1/2.8" 2.0M Pixel Progressive Scan CMOS | |
Minimum illuminance | 0.05Lux@F1.2 (color mode), 0.01Lux@F1.2 (black and white mode) | |
Wide dynamic range | 80 db or higher | |
Signal-to-noise ratio | ≥46dB (AGC OFF) | |
Focal length | 4mm | |
Field Angle | The horizontal Angle of view is 84° and the vertical Angle of view is 45° | |
AI | Face capture | Built-in deep learning AI algorithm, supporting simultaneous detection of 20 faces, face detection, capture |
Abnormal temperature alarm | Voice alarm of abnormal body temperature (default alarm threshold is 37.3ºC) | |
Interface | Power interface | DC12V |
Network interface | 1 10/100BaseT Ethernet with RJ45 port | |
Alarm interface | Support switch alarm signal output, can link external sound and light alarm | |

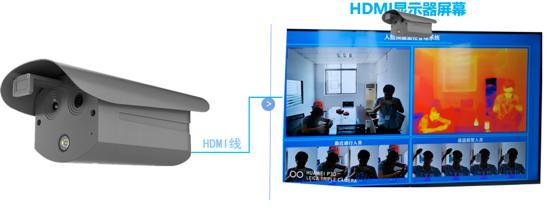

Audio video interface | Supports 1 HDMI HD audio and video output | |
storage | Built-in EMMC storage, can store up to 100,000 temperature records | |
Operating temperature | -10ºC~35ºC | |
Working humidity | 0%-90% RH(no condensation) | |
Protection class | IP64 | |
Power supply | 12VDC | |
Power consumption | ≤6W | |
Product size | 235mm*136mm*92mm | |
weight | <1.2kg |
Shenzhen Hankvision Technology Co.,Ltd. esteblished up in 2012, after 12 years development, now we become an AI video solution provider with cutting-edge technology and creative products. It has been certified with "SRDI" Enterprise (Specialized, Refinement, Differential and Innovation) in Guangdong, National High-tech and Shenzhen High-tech Enterprise.
OEM/ODM Service
Model Technical | KG-9268-TB | |
2.0MP Thermal Imager Camera | ||
Sensor type | Silicon oxide uncooled infrared focal plane detector | |
resolution | 256x192, pixel size 12μm | |
lens | Focal length: 3.2mm, field Angle: 56°x 42 | |
Temperature measurement accuracy | ±0.3ºC, the target temperature is 35ºC~38ºC | |
Temperature measuring distance | One meter - four meters | |
Effective radiated area | 15mm*30mm | |
Temperature range | 30ºC-50ºC | |
Temperature resolution | 0.01ºC | |
Stability accuracy | ≤0.1ºC | |
Image sensor | 1/2.8" 2.0M Pixel Progressive Scan CMOS | |
Minimum illuminance | 0.05Lux@F1.2 (color mode), 0.01Lux@F1.2 (black and white mode) | |
Wide dynamic range | 80 db or higher | |
Signal-to-noise ratio | ≥46dB (AGC OFF) | |
Focal length | 4mm | |
Field Angle | The horizontal Angle of view is 84° and the vertical Angle of view is 45° | |
AI | Face capture | Built-in deep learning AI algorithm, supporting simultaneous detection of 20 faces, face detection, capture |
Abnormal temperature alarm | Voice alarm of abnormal body temperature (default alarm threshold is 37.3ºC) | |
Interface | Power interface | DC12V |
Network interface | 1 10/100BaseT Ethernet with RJ45 port | |
Alarm interface | Support switch alarm signal output, can link external sound and light alarm | |
Audio video interface | Supports 1 HDMI HD audio and video output | |
storage | Built-in EMMC storage, can store up to 100,000 temperature records | |
Operating temperature | -10ºC~35ºC | |
Working humidity | 0%-90% RH(no condensation) | |
Protection class | IP64 | |
Power supply | 12VDC | |
Power consumption | ≤6W | |
Product size | 235mm*136mm*92mm | |
weight | <1.2kg |
Shenzhen Hankvision Technology Co.,Ltd. esteblished up in 2012, after 12 years development, now we become an AI video solution provider with cutting-edge technology and creative products. It has been certified with "SRDI" Enterprise (Specialized, Refinement, Differential and Innovation) in Guangdong, National High-tech and Shenzhen High-tech Enterprise.
OEM/ODM Service
