8 Channel
with Audio
Alarm Recording, Motion Detection Recording, Video Manual
6TB
1
DSP Embedded Type
Availability: | |
---|---|
Quantity: | |
1.3MP 2"wifi ptz cameras,H.265 video compression format
2.4PCS IR dots LED+4pcs white lights,nightvision distance up to 20M,IP66 protection grade

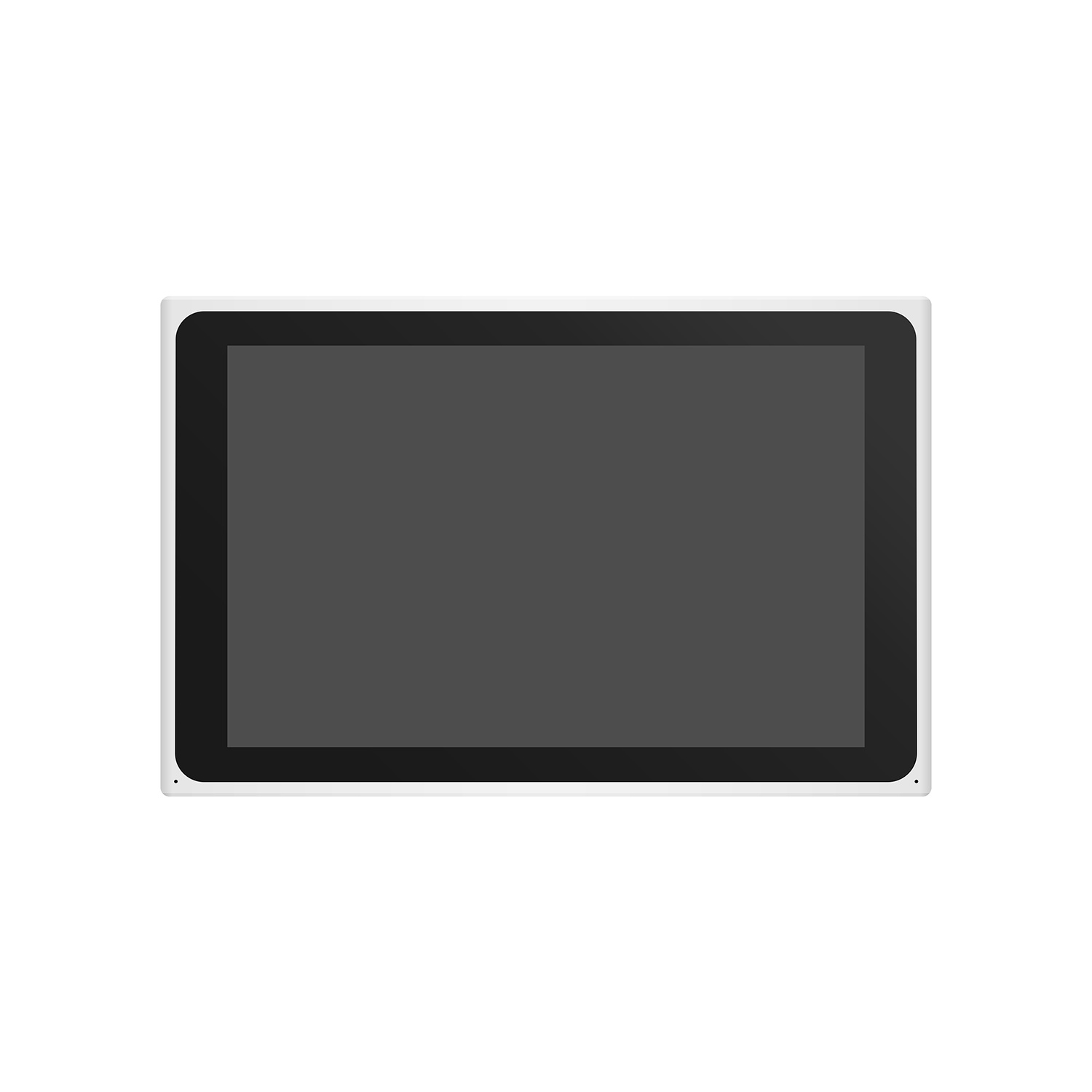

3.10.1" 8CH 3MP LCD NVR display,support 4CH synchronous playback and up to 6TB HDD.support HDMI output. 1 USB2.0 interfaces
4.Wi-Fi, 802.11b/g/n, 150Mbps,450m wireless transmission distance without barriers,auto cascade
5.TUYA app, motion detection alarm,human detection
6.Google assistant and Amazon alexa is optional
Model Classification | 4CH | 8CH | ||
Video Access | 4*3MP/2MP | 8*3MP/2MP | ||
Main processor | MC6810 | |||
Operating System | Embedded-in LINUX operating system | |||
Image Encoding/Decoding | H.265 Main Profile Lever | |||
Preview & Playback | 4*3MP/1080P | 4*3MP/2MP,1*3MP/2MP+7*sub-bit stream | ||
Recording & Backup | Recording method | All-day recording, timing recording, motion detection recording, alarm recording | ||
Occupied space/CH | Video:3.0MP 15G/day,the real occupied space depends on the bit stream | |||
Backup method | Support storage by SATA HDD & recording backup by U disk in USB port | |||
Panel size | 10.1" 1280×800pixels LED | |||
Audio Interface | Comes with 1pcs speaker | |||
Remote Management | Support remote access by APP on Android,IOS smartphones and web page on computer | |||
Network Protocol | TCP/IP,HTTP,NTP,DHCP,UDP,ARP,DDNS,DNS | |||
Type-C(with adapter box) | Power supply | DC5.5mm 12V | ||
Internet interface | RJ45 10M/100Mbps self-adaptive ethernet interface | |||
USB Port | 1pcs USB 2.0 | |||
HDD Port | Support 1pcs 2.5"SATA HDD, up to 6TB | |||
Screen button | Capacitive button, support to switch the screen by touch | |||
Wireless | Wireless module | Built-in professional & enhanced wireless receiver module, antennas | ||
Transmission distance | Over 120M without barriers,over 30M through walls indoor | |||
Power Consumption | 5W(without HDD) | |||
Working Environment | Temprature: -10ºC-+60ºC, humidity: 10%-90% | |||
Panel Dimensions | 264.0×170.4×27.5mm | |||
Color | Ivory white/starry gray | |||
Installation Methods | Standup(comes with bracket), wall-mounted |
Model | 3MP wireless kit module |
Image sensor | 1/2.8" 3.0M Pixel CMOS |
Min.Illumination | 0.01Lux@F1.2(color mode);0.005 Lux@F1.2(black & white mode);0Lux (IR LEDs on) |
S/N Ratio | ≥39dB |
Electronic Shutter | 1/5 - 1/20,000s,support slow shutter |
Day & Night Mode | Infrared/full-color/intelligent three modes |
Wide Dynamic | Support digital wide dynamic |
DNR | Support 2DNR,3DNR |
Video Compression | H.265 Main profile |
Audio | Audio compression: G711, PCM. 1CH input: linear, impedance: 1KΩ,1CH output: linear, impedance: 600 |
Voice intercom | Support two-way voice intercom on APP |
Image Resolution | Main stream(2304×1296@15fps) Substream(640×360@15fps) |
Action Type | Motion detection,human shape detection,sound and light alarm |
Mobile phone remote | Support Android,IOS smartphones remote control |
Network Interface | / |
Wifi | 2.4G |
Wireless Transmission Distance | Up to 450M transmission distance without barriers,at least 30M through walls,real transmission distance depends onenvironment |
Power Supply | DC12V |
working environment | Temperature -20°C ~60°C Humidity 0%-90% RH(no condensing) |
